Product Details:
Payment & Shipping Terms:
|
| Colour: | Yeallow | Application: | Engine |
|---|---|---|---|
| Drive Type: | Electric | Controller: | Touch Screen |
| Software: | ThorX6 | Product Name: | Small China Zixu Factory Electric Pinmark Machine Without Air Pressure |
| Marking Area: | 40x80mm | Marking Materials: | Above HRC60 Need Special Stylus |
| Repeat Accuracy: | 0.02-0.04mm | Power: | 300w |
| Highlight: | electric engraving machine,raycus laser source |
||

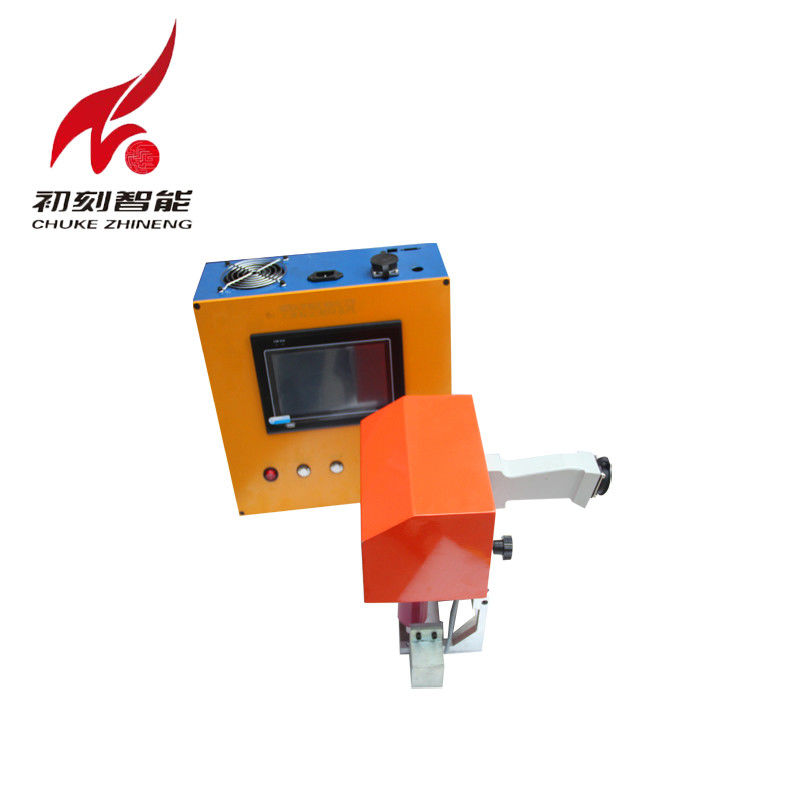

Metal Mark Dot Pin Dot Peen Electric Marking Machine 80x40mm Marking Area
Working Principle
Electric vehicle printer can also be used for all kinds of automobile frame printing, engine and other parts printing, rework and number printing. Electric vehicle code machine environment adaptability, suitable for field open-air operations, large-scale workpieces and remote marking number modification. The equipment is characterized by light weight, small volume and easy to carry. It has been widely used in the coding work of electric vehicle real name certification in various parts of the country, refitting car factory, automobile factory, mining machinery, petroleum machinery, ship, engine manufacturing and so on. Become an indispensable tool for many industries.
Application Range
The real name registration management of the electric bicycle is on the basis of the electric bicycle management information system, on the basis of the electric bicycle management information system, the owner identity of the electric bicycle, the vehicle purchase valid document to carry on record and register, and according to the unique characteristic of the ID card number, the owner ID card number is taken as the person's identification code of the electric vehicle, and the owner ID card number is passed through the dozen. The code machine is directly carved into two parts of the electric vehicle's rack and battery, and is input into the information system for effective management.
Instructions
Mark, mark the information for testing. To understand the marking is in line with the requirements, to review, modify.
Product Features
Low noise, simple operation Software and automatic control fixture seamless connection, can be set to delay clamping, delay printing, etc.
| Marking area: | 40X80mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |
| Software application system: | LCD touch screen |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 10mm |
| Automatic storage: | can automatically store files and print content, 3L / S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X45X55cm |
| Gross weight: | 23KG |
| Warranty time: | one year |
Service Content
More peace of mind:
Free shipping, free installation and commissioning, free operation and maintenance personnel training.
FAQ
What are the marking contents?
Alphanumeric info, date matrix or dot matrix 2D codes, shift codes, barcode, serial number, date, VIN code, time, letter, figure, logo, graphics and etc.
Design Features
With continuous revocation and recovery capabilities, do not have to worry about misuse;
USB interface transmission, plug and play, subvert the old product must use the history of parallel port transmission;
Interface lock function, marking process without having to worry about other people change.
marking after becoming a permanent mark on long, generally marked workpiece weight of less than about 1600(10 5mm high character calculation)
Factory Introduction
Chongqing Chuke intelligent machinery equipment Co.,ltd is a subsidiary of Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large.
Packing And Shipping
We are VIP customer for both DHL and TNT express, the end customer can enjoy fast door to door service with reasonable freight cost.
Free training for machines installation and operation of the staffs.
